Módulo 1/3 Sensor
Módulo 1/3 Sensor
Módulo 1/3 Sensor
Módulo 1/3 Sensor
10403220241014670d1f503016d 1
10405520241014670d1f67886a8 1
10411920241014670d1f7f147fa 1
Módulo 1/3 Sensor
Módulo 1/3 Sensor
Módulo 1/3 Sensor
Módulo 1/3 Sensor
10403220241014670d1f503016d 1
10405520241014670d1f67886a8 1
10411920241014670d1f7f147fa 1

Information

Technical Specifications

  • Voltage: 100-240V~;
  • Power consumption: <1W;
  • Operating frequency: 50-60Hz;
  • Surge protection: 1KV;
  • Dimensões: 47,45×20,5mm;
  • Coverage: 120° with a range of up to 7m at an ambient temperature of 25°C, at a height of 1.2m;
  • Electrical connection: Connector for wires from 0.5mm² to 2.5mm² (wires not included);
  • Time settings: 1 to 5 seconds, 10, 15, 30 and 45 seconds; 1 to 5 minutes, 10, 15, 20, 25, 30, 40 and 50 minutes; 1 hour, 1:30, 2, 2:30, 3, 3:30 and 4 hours;
  • Light Sensor: 1 (at night) to 30 (at dusk) and 31 (always – without photocell). Autolux: memorizes the current ambient light as the minimum ambient light level;
  • Sensitivity adjustment: 1 (sudden movements) to 8 (greater range);
  • Relay Function: The sensor functions as a timed photocontrolled relay. At dusk, it keeps the load switched on for the programmed time (0:30 to 12 hours) and then returns to sensor function.
  • Keep On function: Keeps the load on for the programmed time (0:30 to 12 hours). One-time action;
  • Keep Off Function: Keeps the load off for the programmed time (0:30 to 12 hours). One-time action;
  • Enable/Disable LED Function: Allows you to disable the LED, preventing the product from flashing when it detects movement;
  • Exclusive Inrush Control Technology, a near-zero network switching system (sine wave) that increases the lifespan of the load assembly (lamps, ballast, and sensor);
  • It has an LED indicator for operation, detection, and configured parameters – when the product is operating in one of the following modes: Relay Function, Keep On, or Keep Off, the LED oscillates (blinks slowly and gradually);
  • Detects heat sources (people, cars, etc.) that must be at least 3°C different from the ambient temperature where the sensor is installed (use indoors, protected from the elements (wind, rain and sun);
  • The sensor saves the previously configured parameters (timer settings, brightness, sensitivity, and operating mode) in case of power failure and restoration;
  • The maximum drive power should not be added together in parallel installations;
  • Energy savings of up to 75%;
  • Protection rating: IP32;
  • Components: plastics, electronics, and metal alloys.

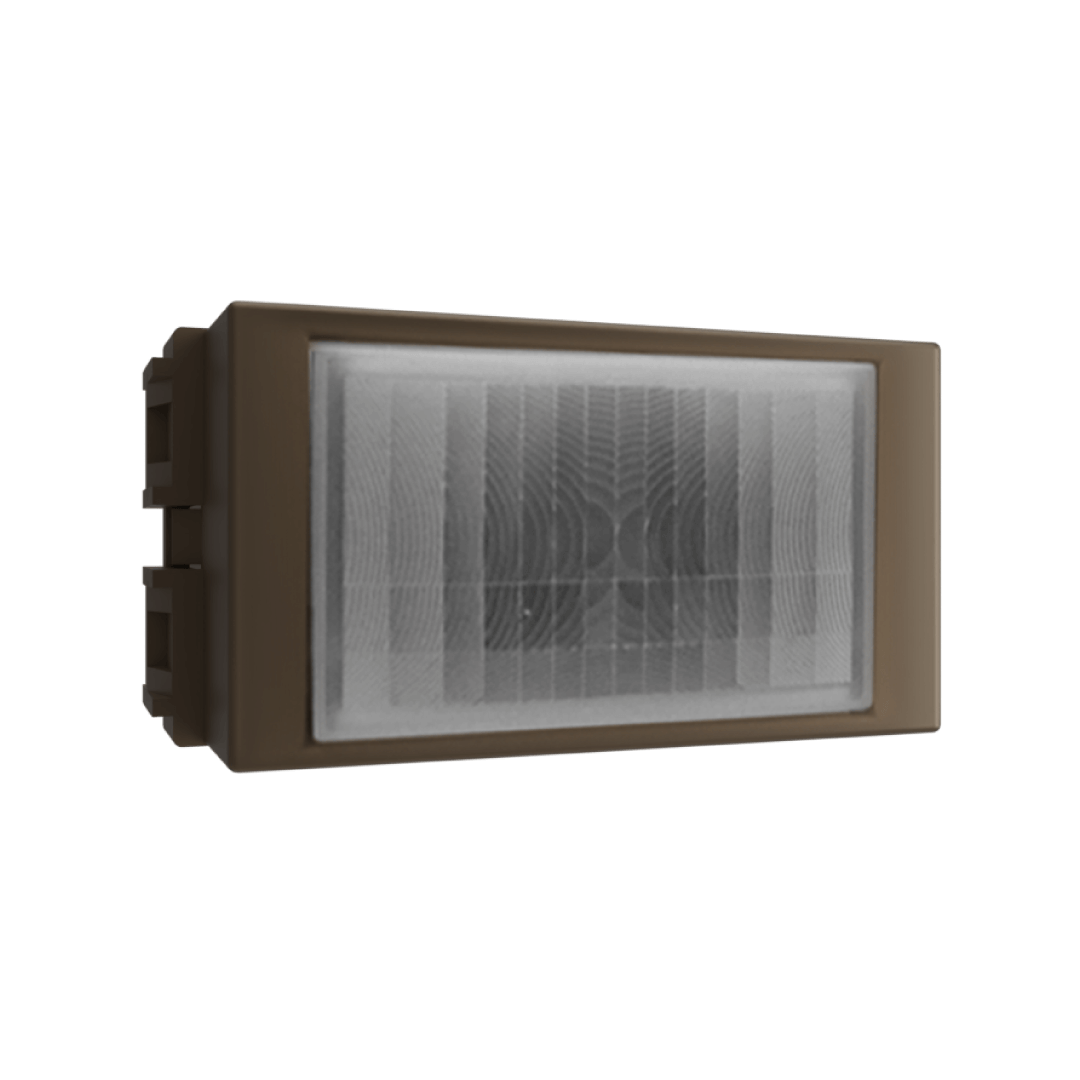

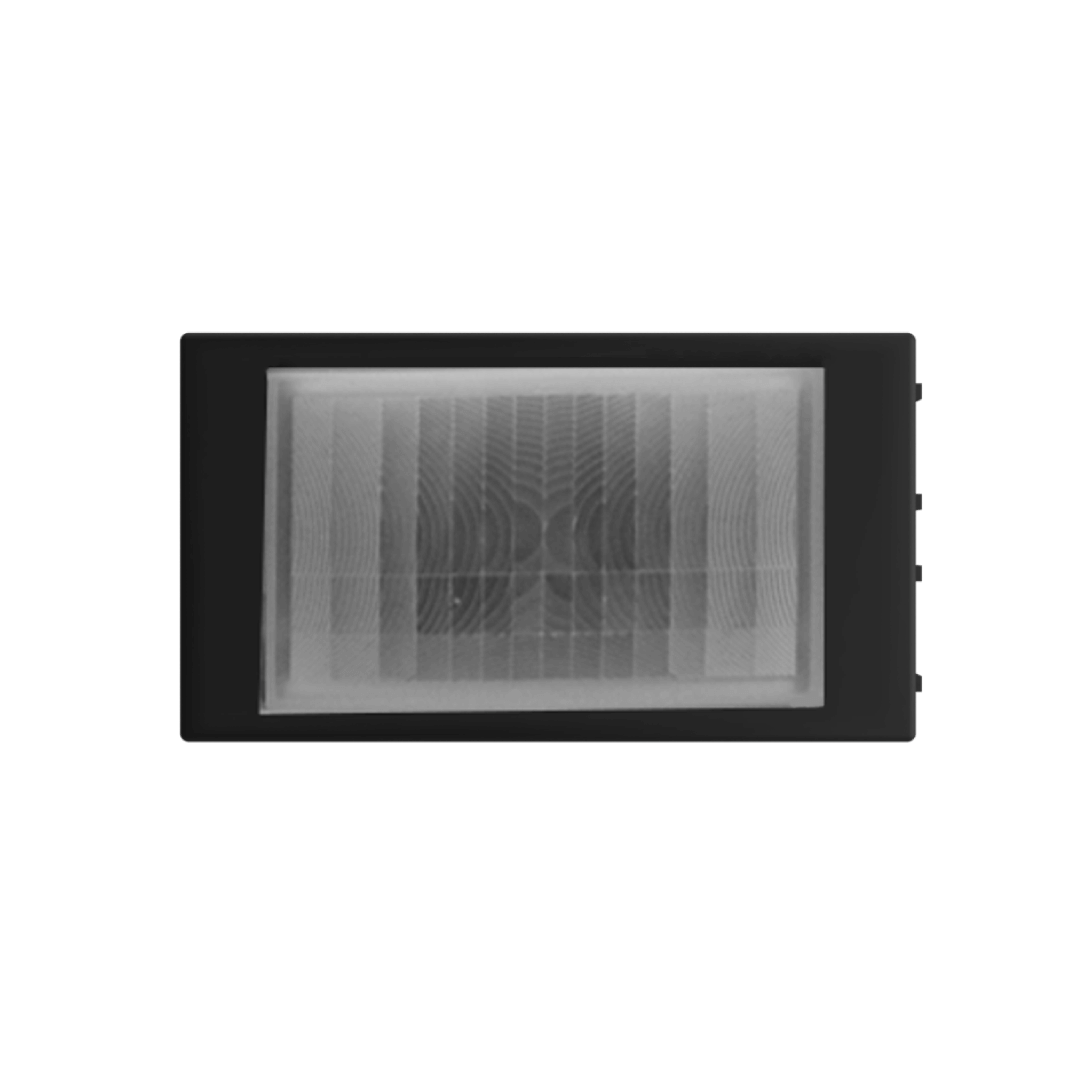

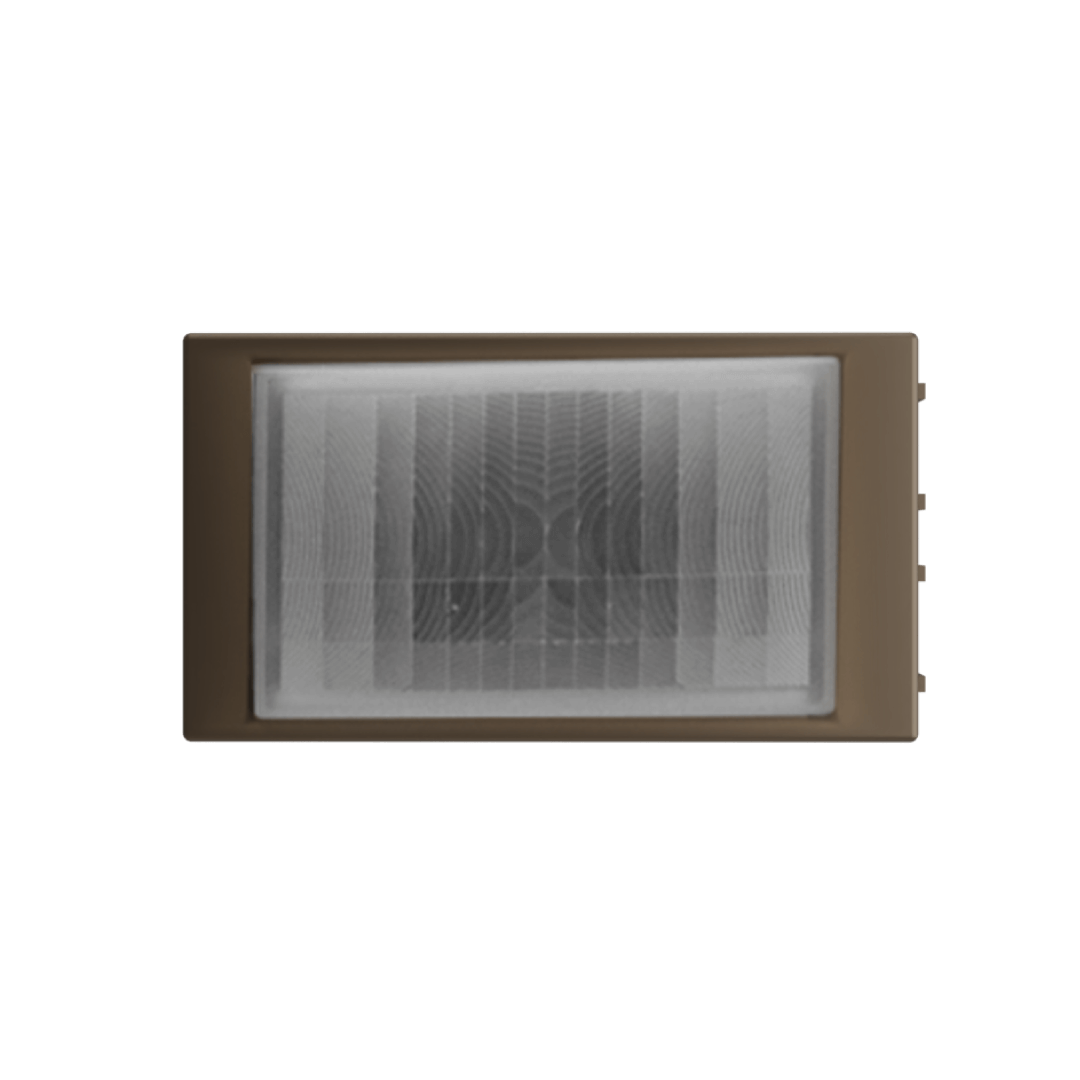

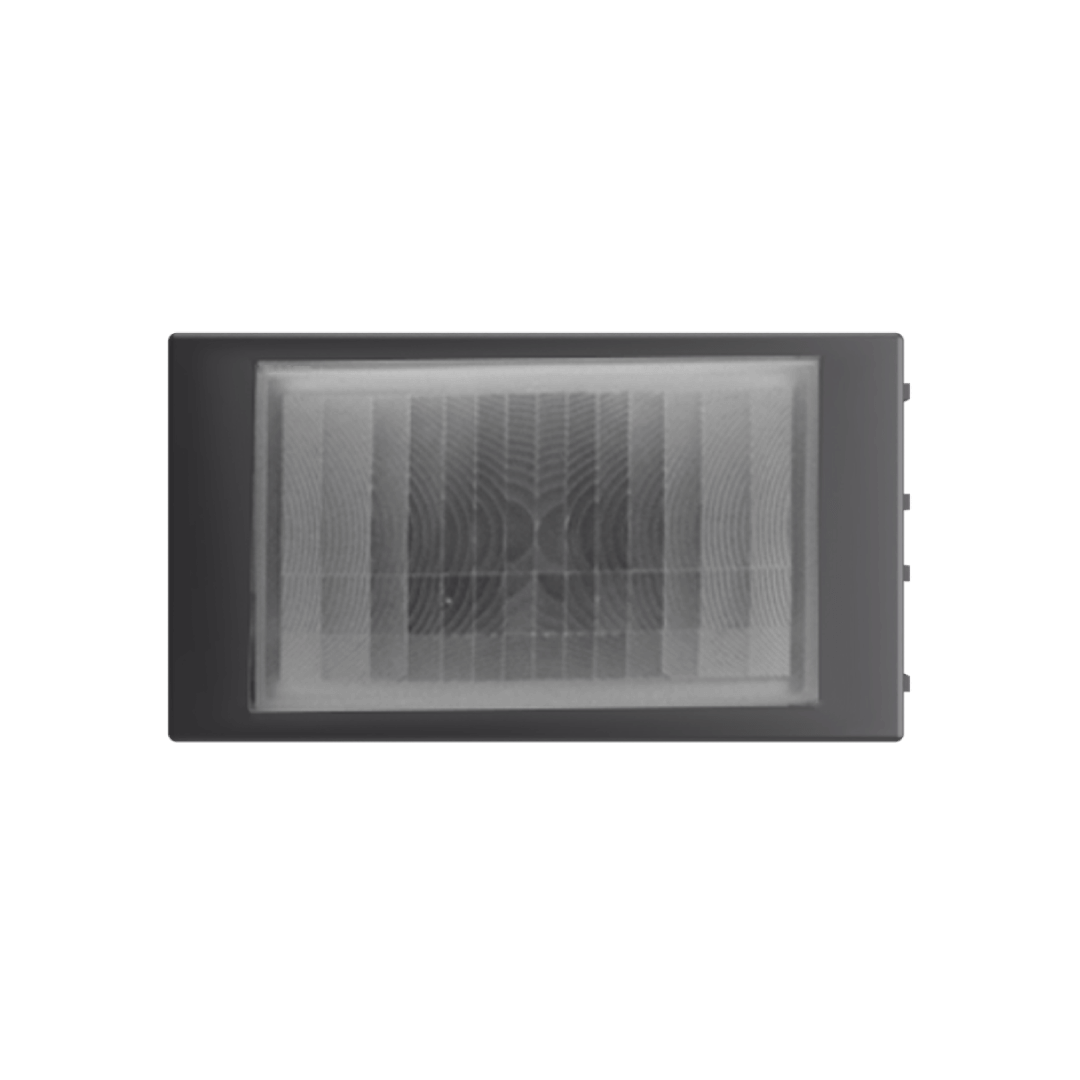

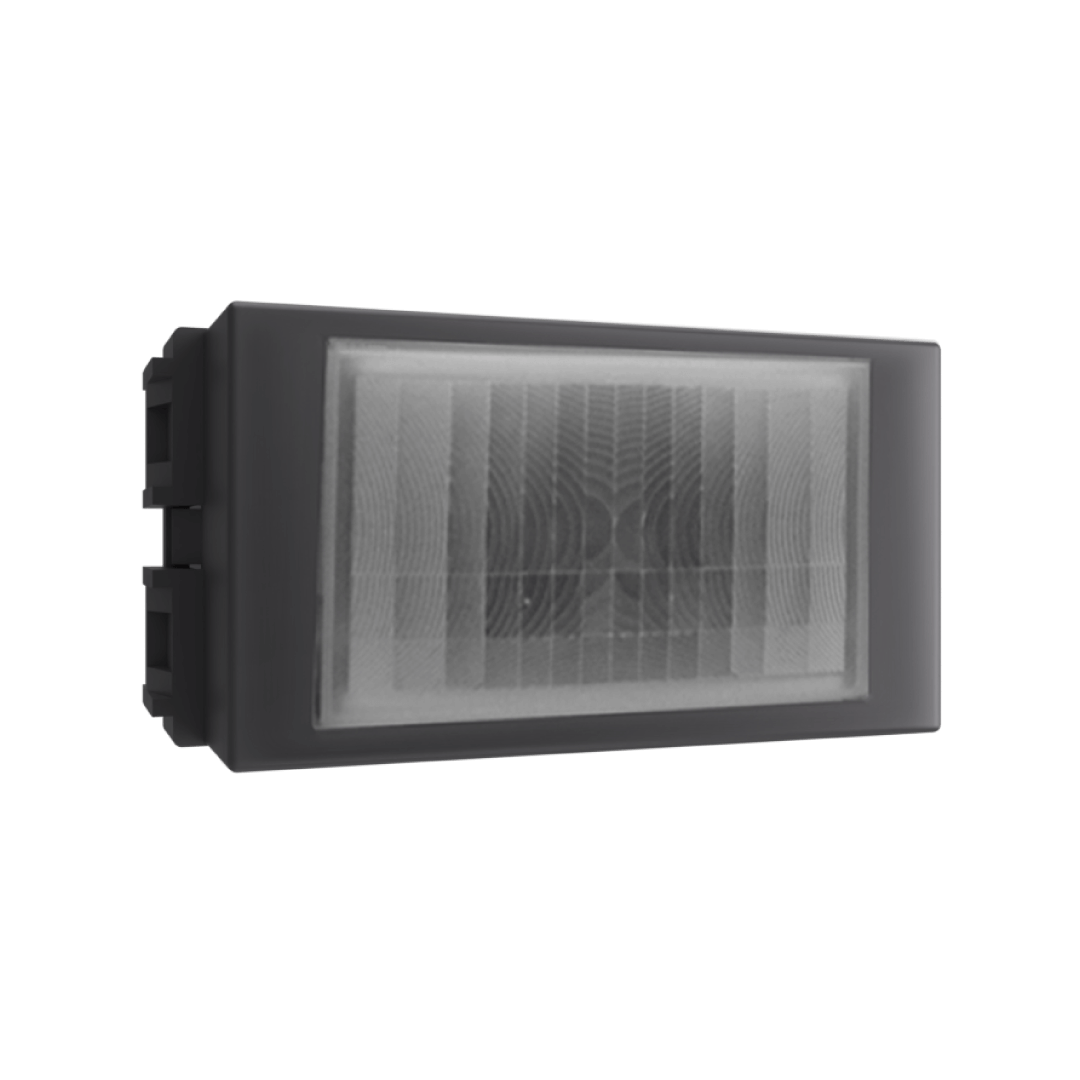

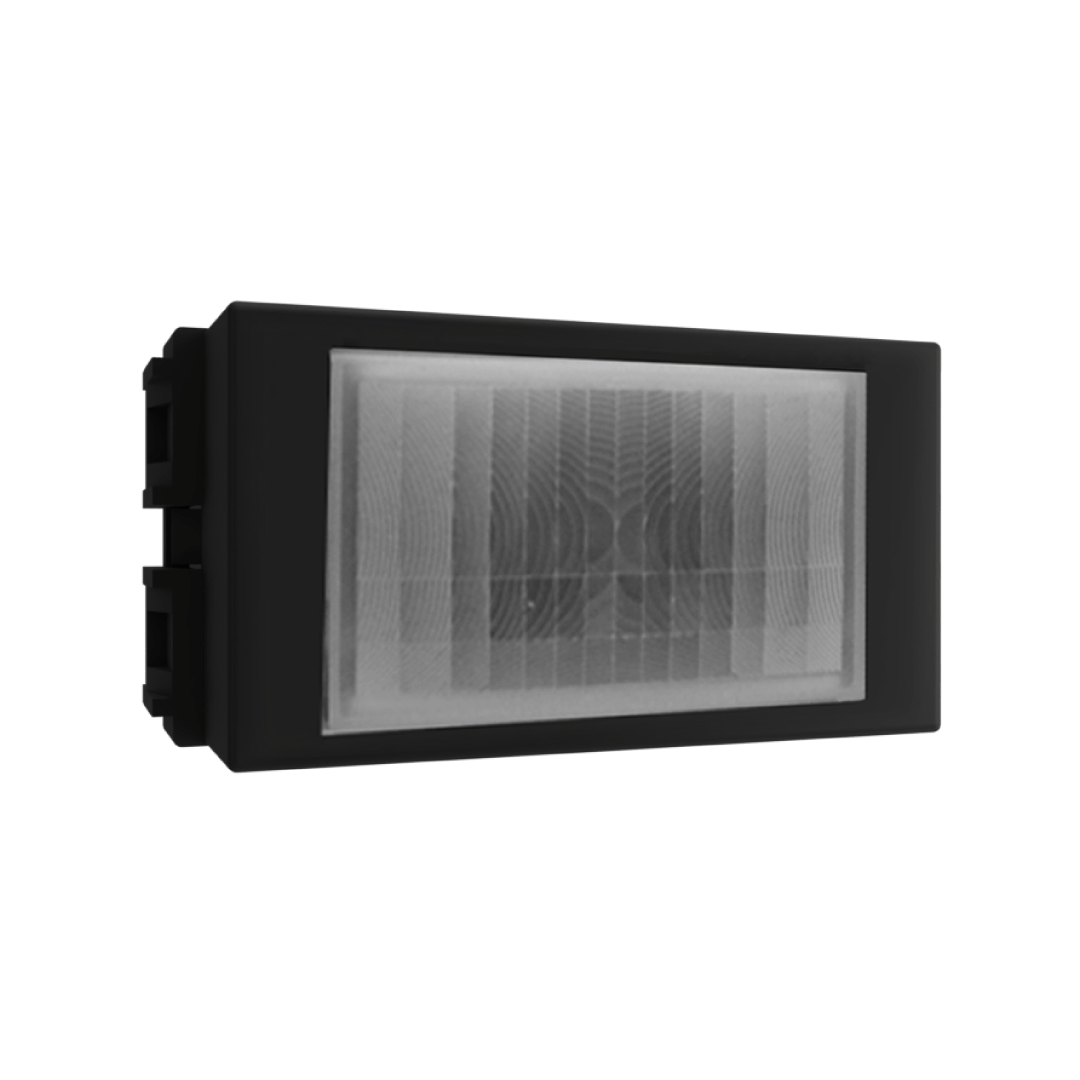

Smart X-Control Wall Mount Presence Sensor Module 1/3

unavailable

Code: LEMOSP4006

Description

O Módulo 1/3 Sensor de Presença de parede Smart X-Control (LEMOSP006) é um comando inteligente que se destina ao acionamento temporizado de cargas. Detecta a movimentação de fontes de calor como pessoas e carros, através de um sensor infravermelho, acionando a carga e permanecendo ligado enquanto houver detecção de presença e desligando no tempo programado, após a última detecção de presença.

Compatível com todos os conjuntos e módulos da linha elétrica MyX da Exatron.

It features exclusive Smart X-Control* technology that allows you to configure your sensor via smartphone without having to open it, exposing yourself to electricity, or having to turn off the circuit breakers.

*App available for iOS and Android devices.

Download

User manual

Information

Technical Specifications

  • Voltage: 100-240V~;
  • Power consumption: <1W;
  • Operating frequency: 50-60Hz;
  • Surge protection: 1KV;
  • Dimensões: 47,45×20,5mm;
  • Coverage: 120° with a range of up to 7m at an ambient temperature of 25°C, at a height of 1.2m;
  • Electrical connection: Connector for wires from 0.5mm² to 2.5mm² (wires not included);
  • Time settings: 1 to 5 seconds, 10, 15, 30 and 45 seconds; 1 to 5 minutes, 10, 15, 20, 25, 30, 40 and 50 minutes; 1 hour, 1:30, 2, 2:30, 3, 3:30 and 4 hours;
  • Light Sensor: 1 (at night) to 30 (at dusk) and 31 (always – without photocell). Autolux: memorizes the current ambient light as the minimum ambient light level;
  • Sensitivity adjustment: 1 (sudden movements) to 8 (greater range);
  • Relay Function: The sensor functions as a timed photocontrolled relay. At dusk, it keeps the load switched on for the programmed time (0:30 to 12 hours) and then returns to sensor function.
  • Keep On function: Keeps the load on for the programmed time (0:30 to 12 hours). One-time action;
  • Keep Off Function: Keeps the load off for the programmed time (0:30 to 12 hours). One-time action;
  • Enable/Disable LED Function: Allows you to disable the LED, preventing the product from flashing when it detects movement;
  • Exclusive Inrush Control Technology, a near-zero network switching system (sine wave) that increases the lifespan of the load assembly (lamps, ballast, and sensor);
  • It has an LED indicator for operation, detection, and configured parameters – when the product is operating in one of the following modes: Relay Function, Keep On, or Keep Off, the LED oscillates (blinks slowly and gradually);
  • Detects heat sources (people, cars, etc.) that must be at least 3°C different from the ambient temperature where the sensor is installed (use indoors, protected from the elements (wind, rain and sun);
  • The sensor saves the previously configured parameters (timer settings, brightness, sensitivity, and operating mode) in case of power failure and restoration;
  • The maximum drive power should not be added together in parallel installations;
  • Energy savings of up to 75%;
  • Protection rating: IP32;
  • Components: plastics, electronics, and metal alloys.
