LERL4001XC2BC

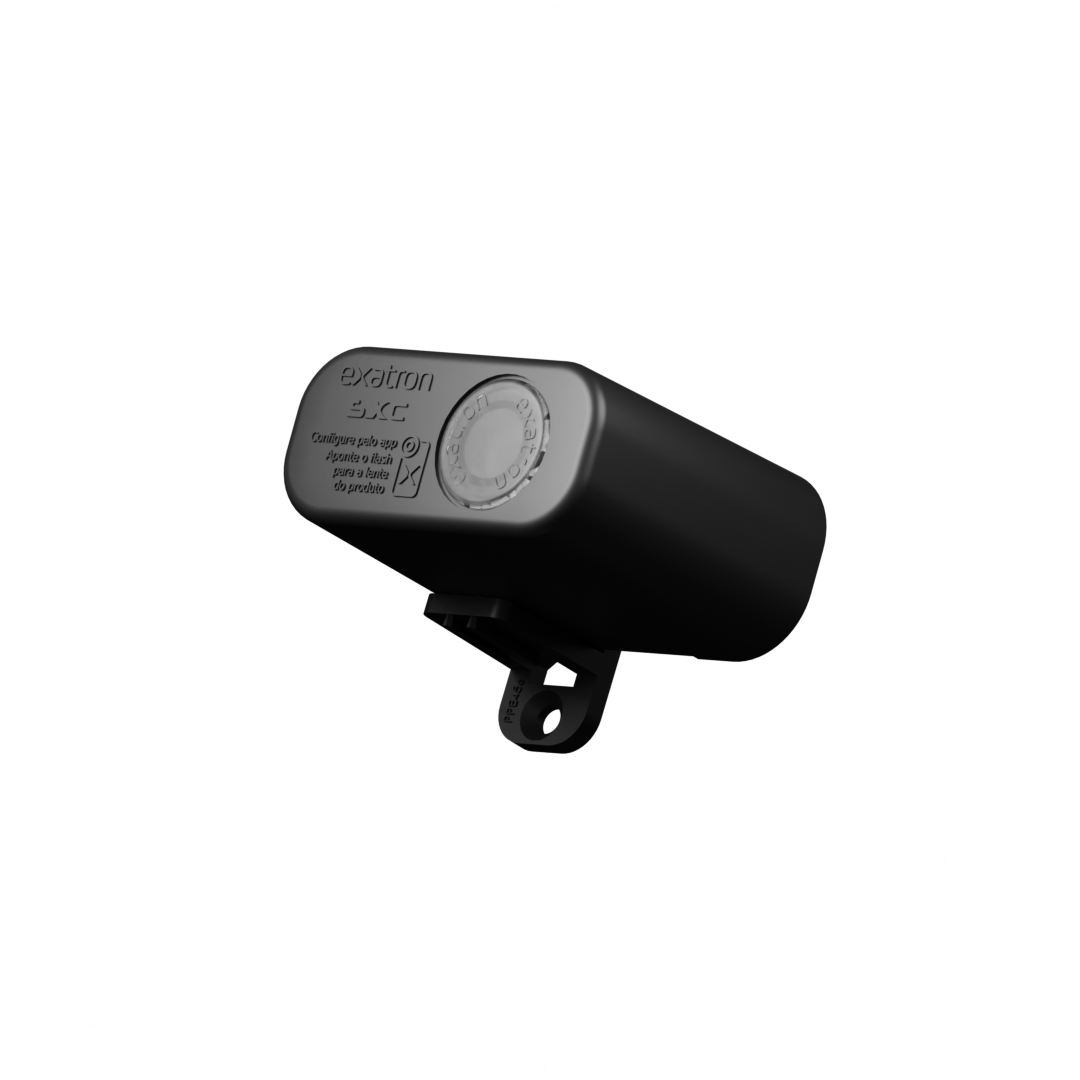

LERL4001XC2PT
LERL4001XC2BC
LERL4001XC2PT
Miniatura do vídeo

Information

Technical Specifications

  • Voltage: 100-240V~;
  • Operating frequency: 50/60Hz;
  • Power consumption: <1W;
  • Tecnologia:  microcontrolado e já vem configurado de fábrica. Pode ter suas configurações alteradas através do aplicativo Smart X-Control;
  • Initial state of the contacts: Normally open (NO);
  • Material: Light gray polypropylene (PP) body;
  • Time adjustment which allows you to time the lamp, that is, set the maximum time it will stay on during the night. Timer settings range from 1 hour to 12 hours, and there is also an automatic mode that turns off the light at dawn;
  • Photocell adjustment: with 30 adjustment levels and Autolux function (allows you to memorize the ambient lighting from which the product will turn on the load);
  • Keep On function: Keeps the load on for the programmed time (1 to 12 hours);
  • Keep Off Function: Keeps the load off for the programmed time (1 to 12 hours);
  • Factory setting: Returns all parameters and features to their original factory values;
  • It has an LED programming indicator;
  • Lamp-friendly: load activation system with low electrical voltage <50V, increasing the lifespan of the assembly (load and relay);
  • Protection rating: IP67;
  • Warranty: 2 years;
  • Dimensions: 54×50.8x26mm;
  • Time filter: double delay that prevents unintended activations due to sudden changes in brightness such as lightning, lasers, clouds, etc. Between 2 and 5 seconds to turn on or off;
  • Operating temperature: -5°C to +50°C;
  • It has a removable mounting bracket;
  • Application: For the automatic control of lamps (LED, incandescent, fluorescent, mixed, electronic and similar);
  • Ideal for country houses, residences, illuminated signs, parking lots, gardens, shop windows, lampposts, etc.
  • Control power:
Voltage Electronics/LED Halogen
220V 300W 1000W
127V 200W 1000W

Installation

There is no need to open the relay or use tools to perform the programming.

Install the relay so that the sensor is exposed to natural daylight and is not affected by other nearby lamps.

Smart X-Control Compact Relay

unavailable

Code: LERL4001 BC

Description

The Smart X-Control Compact Relay is a microcontroller-based photoelectric relay capable of automatically controlling a lamp, turning it on at dusk and off at dawn. It is ideal for use in patios, backyards, gardens, and other outdoor residential environments, offices, hotels, and condominiums. The LERL4001 model features Smart X-Control technology, which allows the user to configure it via a smartphone with the Smart X-Control app, available for iOS and Android.

Download

Packaging

User manual

Information

Technical Specifications

  • Voltage: 100-240V~;
  • Operating frequency: 50/60Hz;
  • Power consumption: <1W;
  • Tecnologia:  microcontrolado e já vem configurado de fábrica. Pode ter suas configurações alteradas através do aplicativo Smart X-Control;
  • Initial state of the contacts: Normally open (NO);
  • Material: Light gray polypropylene (PP) body;
  • Time adjustment which allows you to time the lamp, that is, set the maximum time it will stay on during the night. Timer settings range from 1 hour to 12 hours, and there is also an automatic mode that turns off the light at dawn;
  • Photocell adjustment: with 30 adjustment levels and Autolux function (allows you to memorize the ambient lighting from which the product will turn on the load);
  • Keep On function: Keeps the load on for the programmed time (1 to 12 hours);
  • Keep Off Function: Keeps the load off for the programmed time (1 to 12 hours);
  • Factory setting: Returns all parameters and features to their original factory values;
  • It has an LED programming indicator;
  • Lamp-friendly: load activation system with low electrical voltage <50V, increasing the lifespan of the assembly (load and relay);
  • Protection rating: IP67;
  • Warranty: 2 years;
  • Dimensions: 54×50.8x26mm;
  • Time filter: double delay that prevents unintended activations due to sudden changes in brightness such as lightning, lasers, clouds, etc. Between 2 and 5 seconds to turn on or off;
  • Operating temperature: -5°C to +50°C;
  • It has a removable mounting bracket;
  • Application: For the automatic control of lamps (LED, incandescent, fluorescent, mixed, electronic and similar);
  • Ideal for country houses, residences, illuminated signs, parking lots, gardens, shop windows, lampposts, etc.
  • Control power:
Voltage Electronics/LED Halogen
220V 300W 1000W
127V 200W 1000W

Installation

There is no need to open the relay or use tools to perform the programming.

Install the relay so that the sensor is exposed to natural daylight and is not affected by other nearby lamps.

Default Kit
